A double girder semi gantry crane is a powerful and versatile piece of equipment designed to handle heavy lifting tasks within a workshop environment. Combining the robustness of double girder configurations with the flexibility of gantry systems, these cranes are ideal for a wide range of applications, from manufacturing and assembly to maintenance and repair operations. However, to maximize the benefits and ensure safe and efficient use, it’s essential to understand the proper techniques and best practices for operating a double girder semi gantry crane. This comprehensive guide will walk you through the key aspects of using this type of crane in your workshop.
Understanding the Double Girder Semi Gantry Crane
Before diving into the operational details, it’s important to understand the basic structure and components of a double girder semi gantry crane:
Double Girders: The crane features two parallel girders that provide enhanced stability and support for lifting heavy loads. This configuration allows for greater load capacity and span compared to single girder cranes.

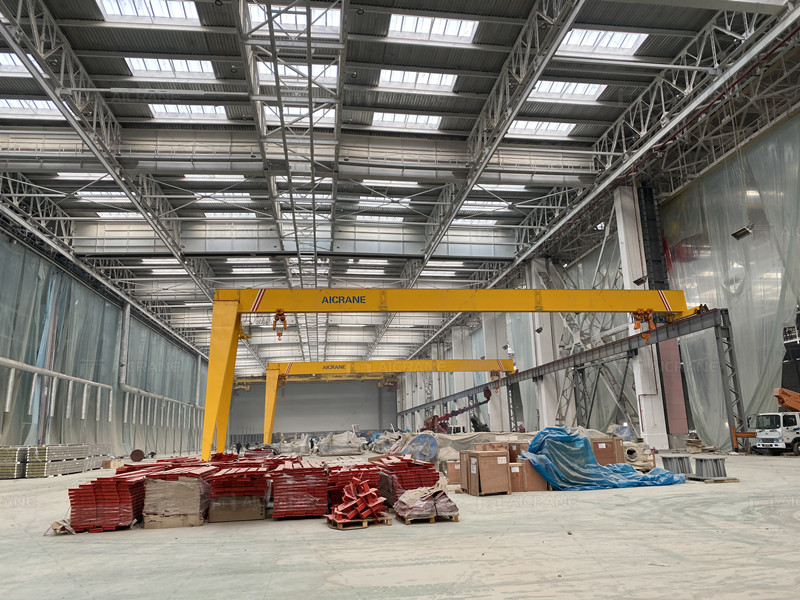

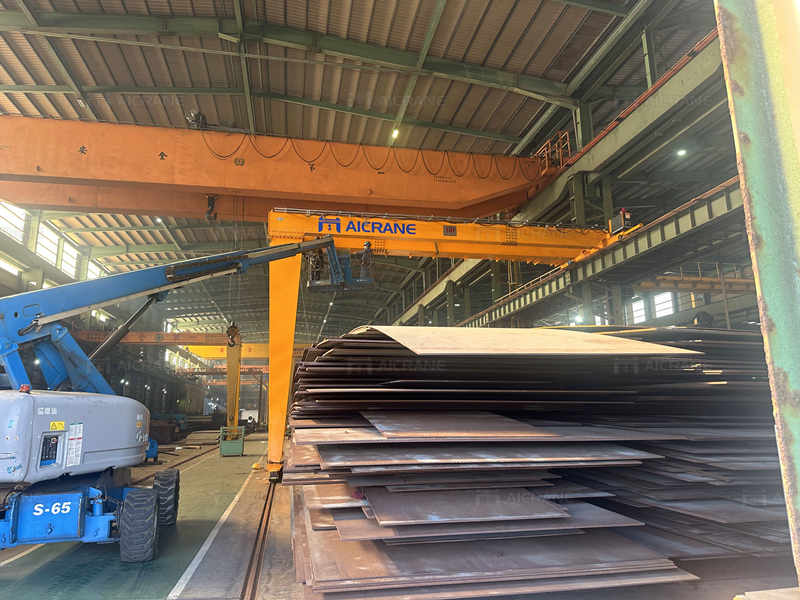

Semi Gantry Design: Unlike full gantry cranes, which have legs on both sides, a semi gantry crane has one side supported by a runway or track on the workshop floor, while the other side is supported by an elevated structure, such as a wall or column. This design maximizes floor space and provides flexibility in installation.
Hoist and Trolley: The hoist, which is mounted on a trolley, moves along the double girders to lift and transport loads. The hoist can be electric, hydraulic, or manual, depending on the specific requirements of the workshop.
Control System: The crane is operated using a control system, which can be either wired or wireless. Advanced control systems offer features such as variable speed control, precise positioning, and safety interlocks.
Preparing for Crane Operation
Proper preparation is crucial for the safe and efficient use of a double girder semi gantry crane. Follow these steps to ensure your workshop is ready for crane operation:
Inspection and Maintenance: Conduct a thorough inspection of the crane before each use. Check for any signs of wear, damage, or malfunction in the girders, hoist, trolley, and control system. Ensure that all safety features, such as limit switches and emergency stop buttons, are functioning correctly. Regular maintenance, as per the manufacturer’s guidelines, is essential to keep the crane in optimal condition.
Load Assessment: Assess the weight and dimensions of the load to be lifted. Ensure that the load does not exceed the crane’s rated capacity. Use appropriate rigging and lifting accessories, such as slings, shackles, and spreader bars, to secure the load.
Work Area Preparation: Clear the work area of any obstructions that could interfere with the crane’s movement. Mark the designated lifting zone and ensure that all personnel are aware of the crane’s operation. Establish clear communication and signaling protocols to coordinate the lifting process.
Operating the Crane
Operating a double girder semi gantry crane requires careful attention to detail and adherence to safety protocols. Follow these steps to ensure safe and efficient crane operation:
Pre-Operation Checks: Perform pre-operation checks to verify that the crane is in proper working condition. Test the hoist, trolley, and control system to ensure smooth and responsive operation. Check that the load is securely attached and balanced before lifting.
Lifting the Load: Use the control system to lift the load slowly and steadily. Avoid sudden movements or jerks that could destabilize the load. Maintain a safe distance between the load and any obstacles, including personnel, equipment, and structures.
Transporting the Load: Move the load horizontally by operating the trolley along the double girders. Ensure that the load remains stable and balanced during transportation. Avoid swinging or swaying of the load, as this can increase the risk of accidents.
Positioning the Load: Carefully position the load at the desired location. Use precise control movements to align the load accurately. Lower the load slowly and steadily, ensuring that it is placed securely and without impact.
Post-Operation Checks: After completing the lifting operation, perform post-operation checks to ensure that the crane is in good condition. Inspect the hoist, trolley, and control system for any signs of wear or damage. Perform any necessary maintenance or repairs before the next use.
Safety Considerations
Safety is paramount when using a double girder semi workshop gantry crane for sale in a workshop. Follow these safety considerations to minimize the risk of accidents and injuries:
Training and Certification: Ensure that all crane operators are properly trained and certified to operate the crane. Regular training sessions and refresher courses are essential to keep operators updated on best practices and safety protocols.
Personal Protective Equipment (PPE): Require all personnel involved in crane operations to wear appropriate PPE, such as hard hats, safety glasses, gloves, and steel-toed boots. This helps protect against potential hazards, such as falling objects or contact with moving parts.
Load Limits: Never exceed the crane’s rated load capacity. Overloading the crane can lead to structural failure and catastrophic accidents. Always verify the weight of the load and use appropriate rigging techniques to distribute the load evenly.
Communication and Signaling: Establish clear communication and signaling protocols between the crane operator and ground personnel. Use hand signals, radios, or other communication devices to coordinate lifting operations and ensure everyone is aware of the crane’s movements.
Emergency Procedures: Develop and implement emergency procedures for crane operations. Ensure that all personnel are familiar with these procedures and know how to respond in case of an emergency, such as a load drop or equipment malfunction.
Maximizing Efficiency and Productivity
To maximize the efficiency and productivity of your double girder semi gantry crane, consider the following tips:
Optimal Workflow: Design the workflow in your workshop to minimize the distance and complexity of crane movements. Arrange workstations, storage areas, and equipment in a logical sequence to streamline lifting operations.
Regular Maintenance: Implement a regular maintenance schedule to keep the crane in optimal condition. This includes lubricating moving parts, inspecting electrical components, and replacing worn or damaged parts.
Technology Integration: Consider integrating advanced technology, such as load monitoring systems, automated positioning, and remote control capabilities, to enhance the crane’s performance and precision.
Continuous Improvement: Continuously evaluate and improve your crane operations. Collect feedback from operators and ground personnel, analyze lifting data, and identify areas for improvement. Implement changes to enhance safety, efficiency, and productivity.
Using a double girder semi gantry crane in a workshop requires careful planning, preparation, and adherence to safety protocols. By understanding the crane’s components and features, preparing the work area, operating the crane safely, and implementing best practices, you can maximize the benefits of this versatile lifting equipment. Regular maintenance, continuous training, and a commitment to safety and efficiency will ensure that your double girder semi gantry crane operates smoothly and reliably, enhancing the productivity and performance of your workshop operations.
