Gantry cranes are indispensable equipment in a wide range of industries, providing efficient lifting and transporting solutions for heavy loads. The rubber tyred gantry (RTG) crane, in particular, is designed for versatility and mobility, making it an excellent choice for various industrial applications. A 100-ton rubber tyred gantry crane offers impressive lifting capacities while maintaining flexibility and ease of operation. Whether for construction, manufacturing, logistics, or shipping, the design of such a crane must consider a variety of factors to ensure safety, reliability, and efficiency. This article explores the key considerations and engineering principles involved in designing a rubber tyred 100 ton gantry crane for multi-purpose industrial use.
Key Considerations for Design
1. Load Capacity and Stability
The primary function of a 100-ton gantry crane is to handle heavy loads safely and efficiently. One of the first considerations in designing such a crane is ensuring its load capacity is not only sufficient but also safe. A 100-ton capacity crane must have robust structural elements, including the crane’s frame, support beams, and lifting components.
The crane must be designed with a stable base to ensure safe lifting and movement of heavy loads. The tyres, which provide mobility, play a critical role in stability. High-quality, durable rubber tyres with strong traction must be selected to support the weight of the crane and its payload. A careful balance must be struck between the crane’s load capacity and the weight distribution across the tyres, preventing the crane from tipping over during operation.
2. Mobility and Manoeuvrability
A key advantage of rubber gantry cranes is their mobility. Unlike rail-mounted cranes, which are restricted to fixed tracks, RTGs can travel across a variety of surfaces, including paved roads, gravel, and even rough terrain. For a 100-ton crane, mobility becomes especially important, as it allows for efficient use across a large industrial site, in ports, or on construction projects.
To enhance manoeuvrability, the crane design should feature a flexible steering system. Modern RTGs use various steering modes, such as front wheel steering, rear wheel steering, and all-wheel steering. The steering system must be selected based on the operational environment and the crane’s intended applications. For example, in tight spaces like ports or warehouses, all-wheel steering can allow the crane to move efficiently in any direction.
Additionally, the crane’s speed and acceleration should be optimized for the environment. While the crane needs to be able to move heavy loads efficiently, it should also have the capacity to navigate confined spaces and make sharp turns when necessary.
3. Lifting Mechanism
The lifting mechanism of the 100-ton gantry crane should be designed to handle heavy loads with precision and stability. This involves selecting appropriate hoists, wire ropes, and lifting motors that can handle the weight without compromising on speed or safety.

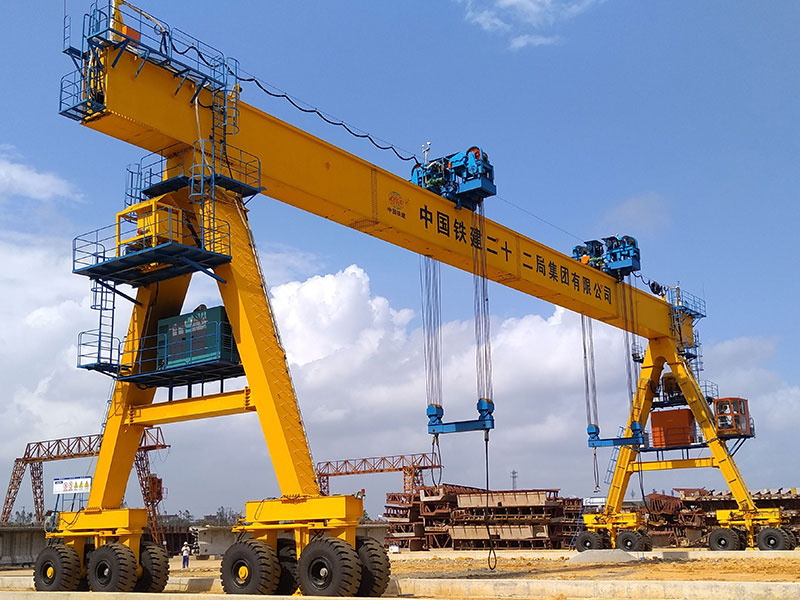

The hoist system of an overhead gantry crane for sale is typically powered by electric motors, which provide a reliable and efficient lifting operation. For a 100-ton crane, a dual hoist configuration could be used for lifting extremely heavy or uneven loads. This system allows for more precise load control and reduces the risk of crane instability during operation.
Moreover, anti-sway systems and load sensors can be integrated into the crane’s lifting mechanism to enhance safety. These features minimize the swaying of the load, which can be a hazard in busy industrial environments. Load sensors provide real-time data on the weight and distribution of the load, ensuring the crane operates within its safe lifting capacity at all times.
4. Structural Design
The structure of the gantry crane is one of the most important elements to consider during the design phase. For a 100-ton rubber tyred gantry crane, the crane’s frame must be designed to distribute the weight of both the load and the crane itself evenly. Typically, the structure is made from high-strength steel to provide the required durability and resistance to wear and tear. The frame should also be corrosion-resistant, especially if the crane will be used in outdoor or maritime environments.
The design of the gantry legs and the girder system must be robust enough to support the crane’s weight and lifting capacity. The girders are usually the critical components responsible for the crane’s ability to carry loads. To optimize load-bearing capacity, the girders are often designed as double or triple box girders. These are engineered to provide additional strength and rigidity without adding unnecessary weight.
Moreover, the structure must include safety features such as emergency brakes, anti-collision sensors, and overload protection systems. These safety measures are crucial in preventing accidents and ensuring the crane operates within its specified limits.
5. Power Supply and Control Systems
Power supply and control systems are critical elements in the design of a mobile gantry crane for sale. Given the large lifting capacities involved in a 100-ton crane, the electrical system must be capable of providing consistent and reliable power to the hoists, motors, and other components.
For modern rubber tyred gantry cranes, the electrical control system should include variable frequency drives (VFDs) for smooth operation. VFDs allow for precise control of the crane’s speed and direction, providing smoother starts, stops, and adjustments during lifting and moving operations. Additionally, the control system should feature user-friendly interfaces, allowing operators to adjust settings, monitor the crane’s performance, and troubleshoot potential issues.
The crane should also be equipped with a remote control system for enhanced operator convenience and safety. Remote control systems enable operators to control the crane from a distance, allowing for greater flexibility in tight or hazardous working environments. The remote control system should be designed for intuitive operation and should include safety features such as emergency stop buttons.
6. Environmental and Safety Considerations
The design of a rubber tyred gantry crane must take into account the environment in which it will be operating. For instance, in maritime ports, cranes are exposed to saltwater, which can lead to corrosion and wear. The use of corrosion-resistant materials, protective coatings, and regular maintenance schedules is essential in such environments.
Safety is a paramount consideration in crane design. A 100-ton gantry crane should be equipped with various safety features to protect operators, other workers, and the surrounding environment. This includes:
- Overload protection: Ensuring the crane never exceeds its rated capacity.
- Anti-collision sensors: Preventing accidents in congested areas.
- Wind sensors: Determining when the crane should be parked due to high wind speeds.
- Emergency braking systems: Automatically activating in case of a power failure or critical fault.
Additionally, operator safety can be enhanced with features like safety cages, anti-slip surfaces, and ergonomic controls.
Applications of 100-Ton Rubber Tyred Gantry Cranes
A 100-ton RTG crane is highly versatile and can be utilized across a wide range of industries:
-
Port Operations: RTGs are commonly used in container ports for loading and unloading cargo. Their ability to move freely across the terminal allows them to handle containers efficiently and transport them to and from ships.
-

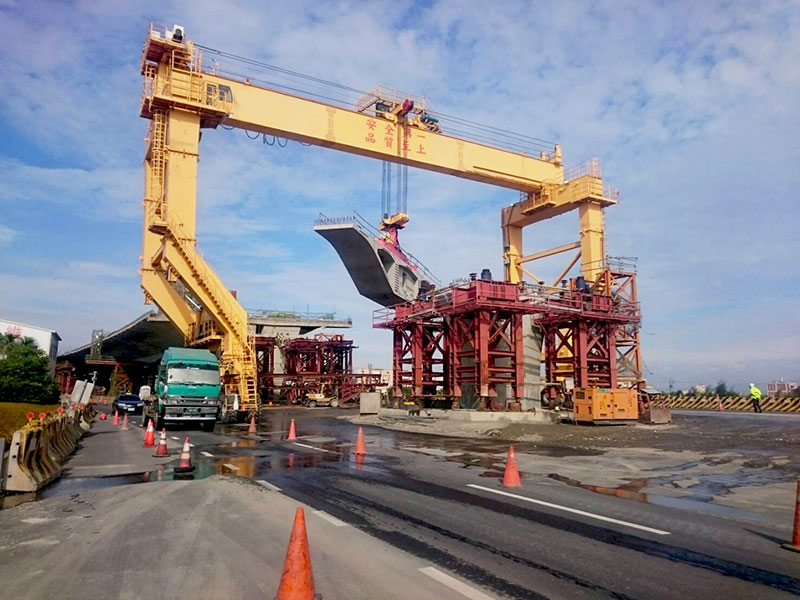

Construction: These cranes are ideal for lifting heavy materials, such as steel beams and prefabricated components, on construction sites. Their mobility allows them to be easily repositioned on large construction sites.
-
Manufacturing: In industrial plants, a 100-ton RTG crane can be used for moving raw materials, assembly components, and finished products within the factory. Its multi-purpose design allows it to adapt to different operational needs.
-
Energy and Mining: RTGs are also used in energy plants and mining operations to lift and transport heavy equipment, machinery, and supplies.
Conclusion
Designing a 100-ton rubber tyred gantry crane for multi-purpose industrial applications is a complex process that requires careful attention to detail in every aspect of the design, from load capacity and stability to mobility, safety, and power systems. By focusing on these factors, engineers can create a versatile, reliable, and efficient crane that meets the diverse needs of modern industries. Whether for use in ports, construction, or manufacturing, a well-designed RTG crane can significantly enhance operational efficiency and safety in heavy lifting tasks.
